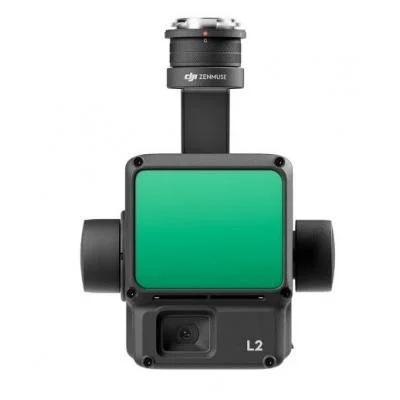

DJI Zenmuse L2 Worry-Free Basic Combo
The DJI Zenmuse L2 is a high-precision aerial LiDAR system designed for professional geospatial data capture. It combines a frame-based LiDAR module, DJI's proprietary high-accuracy IMU system, and a 4/3 CMOS RGB mapping camera to deliver precise, efficient, and reliable 3D data collection. When used with DJI Terra, it provides a comprehensive solution for high-accuracy mapping and post-processing.
The DJI Zenmuse L2 is a high-precision aerial LiDAR system designed for professional geospatial data capture. It combines a frame-based LiDAR module, DJI's proprietary high-accuracy IMU system, and a 4/3 CMOS RGB mapping camera to deliver precise, efficient, and reliable 3D data collection. When used with DJI Terra, it provides a comprehensive solution for high-accuracy mapping and post-processing.
The DJI Zenmuse L2 is a high-precision aerial LiDAR system designed for professional geospatial data capture. It combines a frame-based LiDAR module, DJI's proprietary high-accuracy IMU system, and a 4/3 CMOS RGB mapping camera to deliver precise, efficient, and reliable 3D data collection. When used with DJI Terra, it provides a comprehensive solution for high-accuracy mapping and post-processing.
In order to process your order, please complete the product enquiry form below. A member of the team will get in touch using your contact details to organise the payment and shipping of your order.
Highlights
Integrates LiDAR, IMU, and RGB camera for complete aerial data capture
Achieves horizontal accuracy of 5 cm and vertical accuracy of 4 cm at 150 m altitude
Captures up to 1,200,000 points per second with support for up to 5 returns
20 MP RGB camera with 4/3 CMOS sensor and mechanical shutter
Offers real-time point cloud coloring and multiple scan modes
Specifications
Dimensions: 155 × 128 × 176 mm
Weight: 905 ± 5 g
Power Consumption: 28 W (typical), 58 W (maximum)
IP Rating: IP54
Operating Temperature: -20° to 50° C
Storage Temperature: -20° to 60° C
Detection Range: Up to 450 m at 50% reflectivity
Compatibility
DJI Matrice 300 RTK (requires DJI RC Plus)
DJI Matrice 350 RTK
What’s in the box?
Zenmuse L2 x1
microSD Card (128GB) x 1
Lens Cap x 1
Storage Case x 1
Lens Cleaning Cloth x 1
With the worry free basic combo you are entitled to two affordable replacements for a small fee within the first year.
