Matrice 300 Series BS60 Intelligent Battery Station
The DJI BS60 Intelligent Battery Station is a rugged, portable charging solution designed for the Matrice 300 RTK drone. It allows operators to charge up to eight TB60 flight batteries and four WB37 remote controller batteries simultaneously, ensuring extended operational capabilities in the field.
The DJI BS60 Intelligent Battery Station is a rugged, portable charging solution designed for the Matrice 300 RTK drone. It allows operators to charge up to eight TB60 flight batteries and four WB37 remote controller batteries simultaneously, ensuring extended operational capabilities in the field.
The DJI BS60 Intelligent Battery Station is a rugged, portable charging solution designed for the Matrice 300 RTK drone. It allows operators to charge up to eight TB60 flight batteries and four WB37 remote controller batteries simultaneously, ensuring extended operational capabilities in the field.
In order to process your order, please complete the product enquiry form below. A member of the team will get in touch using your contact details to organise the payment and shipping of your order.
Key Features:
Simultaneous charging of up to 8 TB60 and 4 WB37 batteries.
Full charge of two TB60 batteries in approximately 60 minutes (220–240V input).

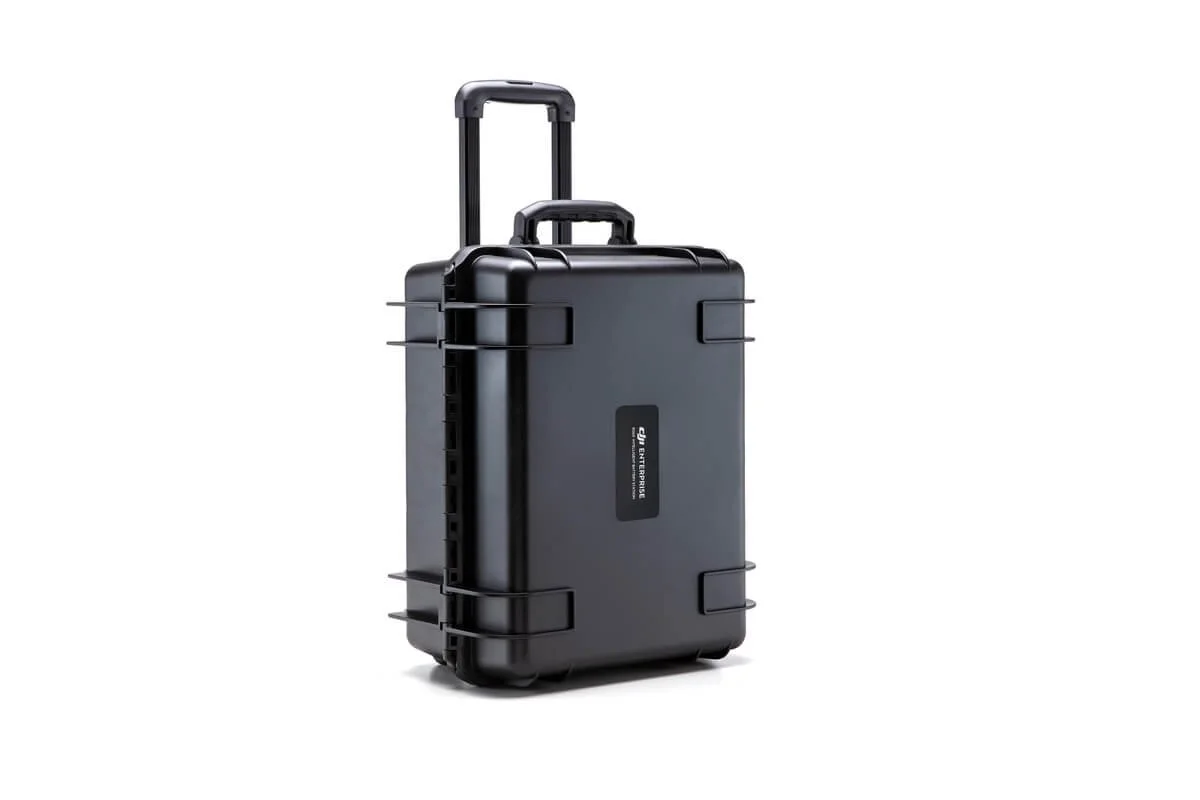

Portable design with built-in wheels and a telescoping handle for easy transport.

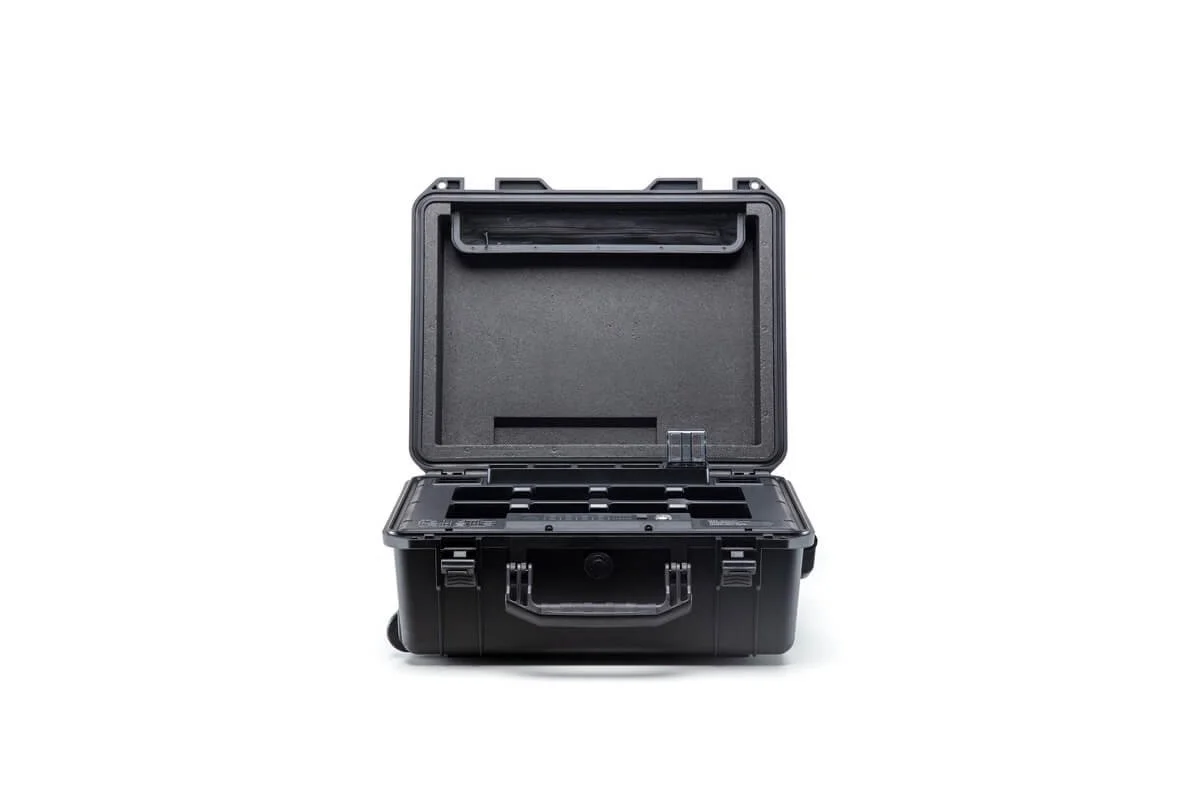

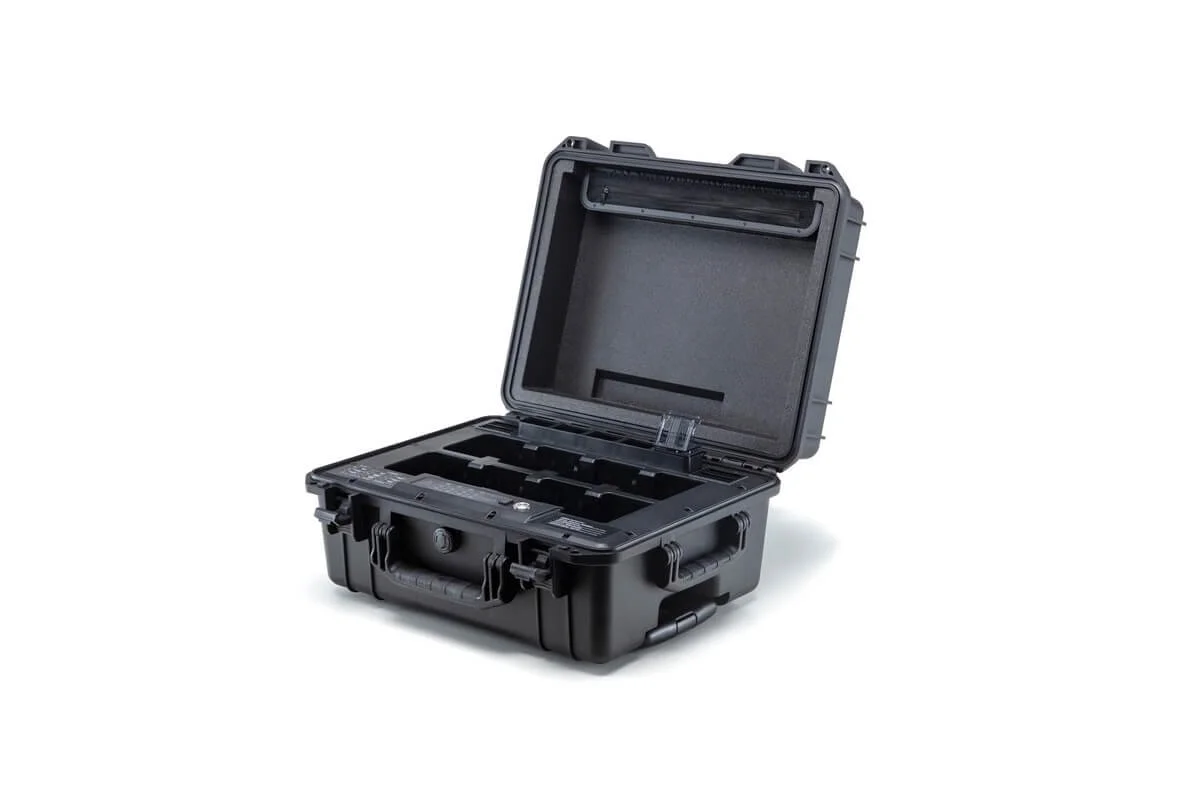

Rugged, hard-shell case with built-in locking clasps and padlock holes for added security.
Integrated pressure valve, air intake, and air vent for safe operation.
Firmware updates via USB Type-C port.
Specifications:
Dimensions: 510 × 403 × 252 mm
Weight (without batteries): 8.37 kg
Maximum Load: 12 kg
Input Voltage: 100–120V or 220–240V AC, 50–60 Hz
Output Power:
TB60 Batteries: 52.8V, 7A (100–120V), 8.9A (220–240V)
WB37 Batteries: 8.7V, 6A
Operating Temperature: -20°C to 40°C
Charging Time:
Full charge (TB60): 60 minutes (220–240V), 70 minutes (100–120V)
20%–90% charge (TB60): 30 minutes (220–240V), 40 minutes (100–120V)
Protection Features: Anti-backflow, short circuit, overvoltage, overcurrent, and temperature protection.
Compatibility:
DJI Matrice 300 RTK
DJI Matrice 350 RTK
What's in the Box:
DJI BS60 Intelligent Battery Station
AC Power Cable
Remote Controller Charging Cables (4x)
Limited 1-Year Warranty
The BS60 Intelligent Battery Station is an essential accessory for professionals requiring efficient and reliable battery management for extended drone operations.
